Description

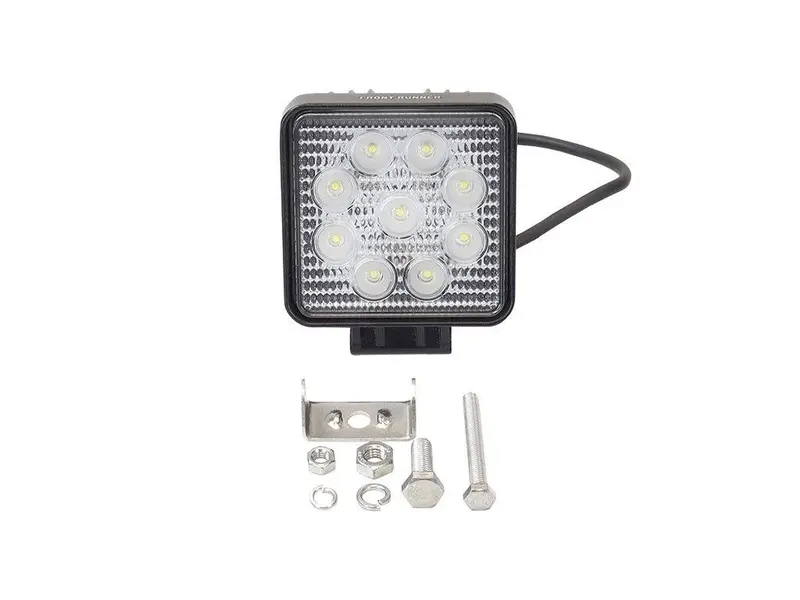

This 4” LED Light Square features nine (9) high-performance LEDs for improved visibility. 1620 lumen provides 6000 Kelvin light intensity and is distributed in a flood beam pattern, at 60 degrees for wide-field illumination. Polarity protection ensures longer lifespan by automatically breaking the circuit in the event of over-voltage.
Equipped with a robust polycarbonate lens set in a die-cast aluminum housing. Special regulations and legislation within each country should be taken into consideration before use.
Expected LED life of 30,000 hours.
A complete kit to secure your 4” Light Square to your Slimline II Rack is available: RRAC059.
NOTE: When powering your light, ensure your power cord is installed into the light before plugging it into the power source.
Disconnecting would need to be done from the power source then the light.
INSTALL
SPECIFICATIONS
Consists of:
1 x 4” 27W Square LED Work Light1 x Mounting Bracket Set
Materials used:Aluminum housingPMMA polycarbonateStainless steel mounting brackets
Product Dimensions:
128mm (5”) L x 110mm (4.3”) W x 55mm (2.2”) H
Weight:0.9kg (2lbs) Special Note:Operating Temperature: -40°C – +60°CIP Rating: IP67Protections: Reverse PolarityInput Voltage: 9-32V DCPower Consumption: 3W*9PCSLuminous Flux: 1620lmCurrent Draw: 2.1A@12V, 1.1A@24VColor Temperature: 6000KBeam Pattern: Flood BeamBeam Angle: 60deg
