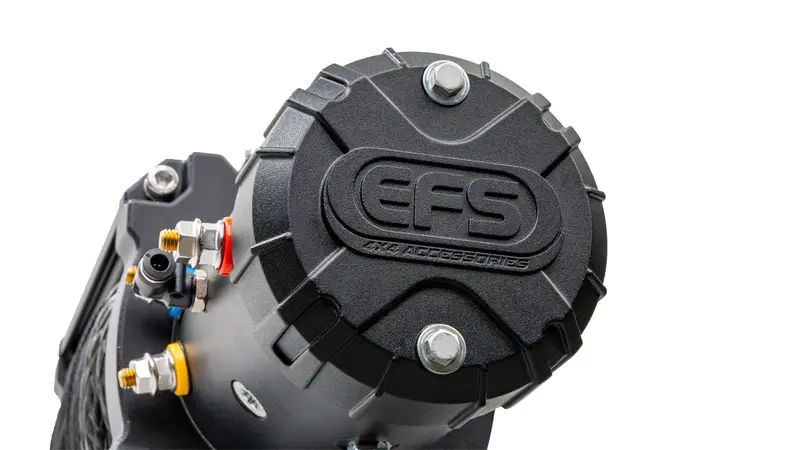

Name: EFS RECON R10 Electric Winch
Brand: EFS
SKU: RECON10
Availability: InStock

Description

The EFS Recon R13 Winch has been developed with a super fast retrieve rate and boasts a 13,000 LBS rated single line pull. The R13 efs winch has a full load automatic brake with a 265:1 gear ratio and comes complete with all pictured accessories.

10,000lbs / 4,540kg rated single line pull
6.0HP 12volt series wound electric motor Waterproof motor/gearbox
Breather kit
3 stage zinc plated hardened planetary gears
158:1 gear ratio
Rotating ring gear clutch with T-handle clutch engagement
18,000lbs SYNTUFF synthetic multistrand rope
High strength antibind nano technology
Abrasion resistant – 10mm diameter – 25m length
Full load automatic brake located at the motor side of the drum
Designed for synthetic rope – no heat build up in the drum
Recommended battery 650CCA minimum for winching
Battery leads: 1.83m
Mounting bolt pattern: 254mm x 114.3mm
Fairlead: Aluminium
Control box relay: 450A
Waterproof
Incl wireless & wired remote 3.6m lead

Note: We recommend a battery isolation switch to be used with this EFS winch.

Weight: 27.5kgs

Rated pulling power: rated single line pull
–Recon 10: 10,000lbs / 4,540kg

Motor: 12V series wound balanced electric motor
–Recon 10 & 13: 6.0HPGear ratio:
–Recon 10: 158:1
Gearing system: 3-stage zinc-plated hardened planetary gears
-Brake: Full load automatic brake (motor side of the drum)
-Designed for: Synthetic rope – no heat build-up in the drum
-Bearings: Sealed bearings for smooth motor operation
-Clutch type: Rotating ring gear with T-handle engagement
