Description

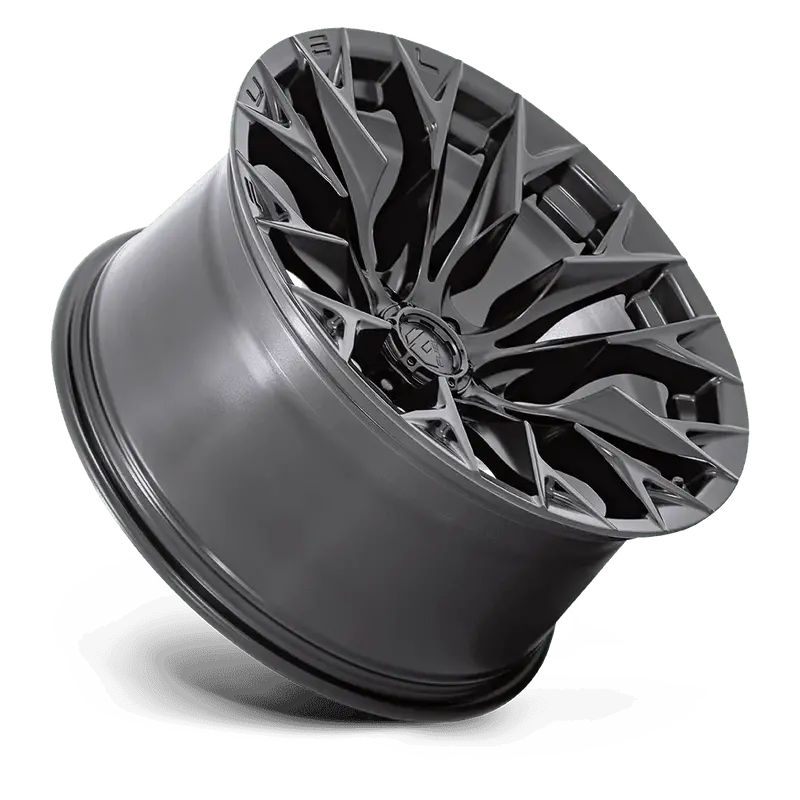

Fuel Wheels have pushed the limits of wheel design with the Fuel Flame. This inferno-inspired off-road wheel is built to handle the abuse of trails while accentuating your rig’s style. Featuring a one-piece monoblock construction, the Flame showcases a fiery asymmetrical spoke design with tapered edges and dynamic milled accents. Available in 17″ to 22″ sizes and offsets ranging from -24mm to +20mm, it fits 5, 6, and 8-lug configurations. Ideal for vehicles like the Ford F-150, Chevrolet Silverado 1500, Toyota Tacoma, and heavy-duty trucks like the Chevrolet Silverado 2500 and GMC Sierra 2500, the Fuel Flame sets your ride’s style ablaze.
| Part# | Model | Finish | Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load | Lip Size | Cap |
| D80420907550 | D804 FLAME | BLACKOUT | 20X9 | 5X127 | 5.04 | 1mm | 71.5 | 39.00 lbs | 2500 | 0 | 1004-68GBLD |
| D8042090B450 | D804 FLAME | BLACKOUT | 20X9 | 5X139.7 | 5.04 | 1mm | 78.1 | 38.90 lbs | 2500 | 0 | 1004-68GBLD |
| D80420908957 | D804 FLAME | BLACKOUT | 20X9 | 6X135 | 5.79 | 20mm | 87.1 | 41.40 lbs | 2500 | 0 | 1004-69GBLD |
| D80420908950 | D804 FLAME | BLACKOUT | 20X9 | 6X135 | 5.04 | 1mm | 87.1 | 41.90 lbs | 2500 | 0 | 1004-69GBLD |
| D80420908457 | D804 FLAME | BLACKOUT | 20X9 | 6X139.7 | 5.79 | 20mm | 106.1 | 41.00 lbs | 2500 | 0 | 1004-69GBLD |
| D80420908450 | D804 FLAME | BLACKOUT | 20X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 41.44 lbs | 2500 | 0 | 1004-69GBLD |
| D80420908250 | D804 FLAME | BLACKOUT | 20X9 | 8X165.1 | 5.04 | 1mm | 125.1 | 47.20 lbs | 3700 | 0 | 1005-50SGBLD |
| D80420908257 | D804 FLAME | BLACKOUT | 20X9 | 8X165.1 | 5.79 | 20mm | 125.1 | 48.90 lbs | 3700 | 0 | 1005-50SGBLD |
| D80420901757 | D804 FLAME | BLACKOUT | 20X9 | 8X170 | 5.79 | 20mm | 125.1 | 48.90 lbs | 3700 | 0 | 1005-49TGBLD |
| D80420901750 | D804 FLAME | BLACKOUT | 20X9 | 8X170 | 5.04 | 1mm | 125.1 | 47.20 lbs | 3700 | 0 | 1005-49TGBLD |
| D80420901857 | D804 FLAME | BLACKOUT | 20X9 | 8X180 | 5.79 | 20mm | 124.2 | 48.90 lbs | 3700 | 0 | 1005-49GBLD |
| D80420901850 | D804 FLAME | BLACKOUT | 20X9 | 8X180 | 5.04 | 1mm | 124.2 | 47.20 lbs | 3700 | 0 | 1005-49GBLD |
| D80420007547 | D804 FLAME | BLACKOUT | 20X10 | 5X127 | 4.79 | -18mm | 71.5 | 39.00 lbs | 2500 | 0 | 1004-68GBLD |
| D8042000B447 | D804 FLAME | BLACKOUT | 20X10 | 5X139.7 | 4.79 | -18mm | 78.1 | 38.90 lbs | 2500 | 0 | 1004-68GBLD |
| D80420008947 | D804 FLAME | BLACKOUT | 20X10 | 6X135 | 4.79 | -18mm | 87.1 | 42.10 lbs | 2500 | 0 | 1004-69GBLD |
| D80420008447 | D804 FLAME | BLACKOUT | 20X10 | 6X139.7 | 4.79 | -18mm | 106.1 | 41.70 lbs | 2500 | 0 | 1004-69GBLD |
| D80420008247 | D804 FLAME | BLACKOUT | 20X10 | 8X165.1 | 4.79 | -18mm | 125.1 | 50.50 lbs | 3700 | 0 | 1005-50SGBLD |
| D80420001747 | D804 FLAME | BLACKOUT | 20X10 | 8X170 | 4.79 | -18mm | 125.1 | 50.50 lbs | 3700 | 0 | 1005-49TGBLD |
| D80420001847 | D804 FLAME | BLACKOUT | 20X10 | 8X180 | 4.79 | -18mm | 124.2 | 50.50 lbs | 3700 | 0 | 1005-49GBLD |
| D80420207547 | D804 FLAME | BLACKOUT | 20X12 | 5X127 | 4.77 | -44mm | 71.5 | 44.80 lbs | 2500 | 0 | 1004-68GBLD |
