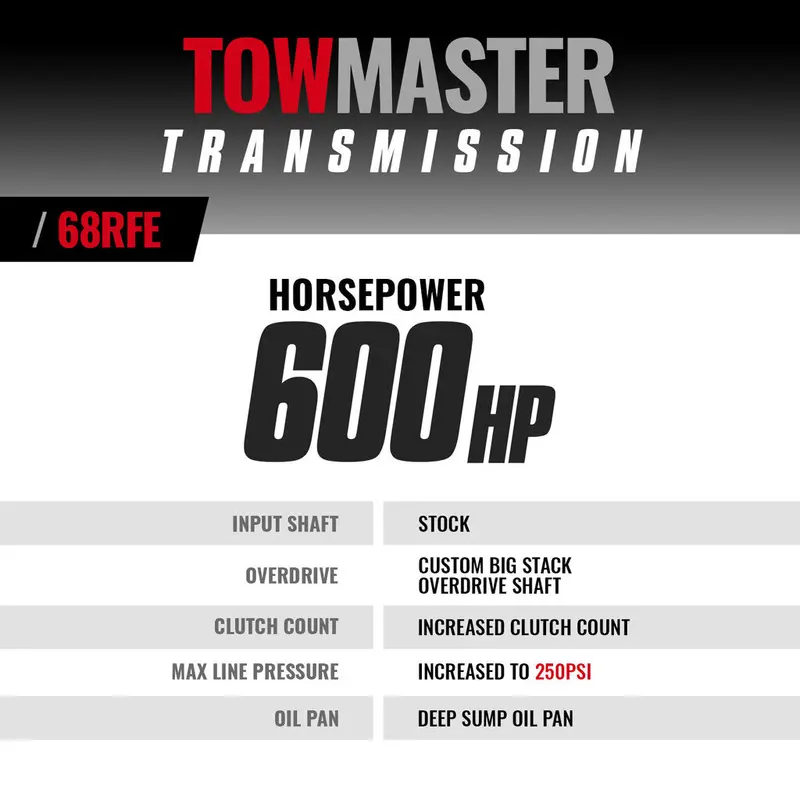

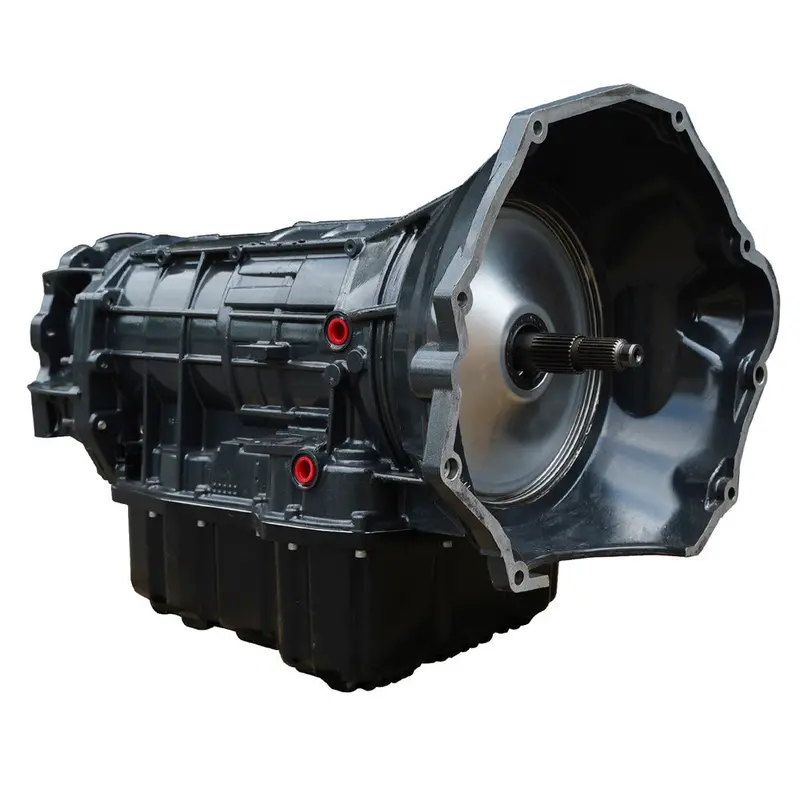

BD’s 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer “Big Stack” spline OD shaft, and 16 frictional surfaces.
FEATURES
- Hard anodized valve body and new solenoid pack installed in every unit
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- Available with Billet input shaft
- Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
INSTALL TIME
- 9 Hours
WARRANTY
Parts
- 36-Months
- 150,000 Miles
Labor
- 12-Months
- 24,000 miles
Note
- No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
NOTE
- BD torque converter must be installed at the time of installation of the transmission – use of a 3rd party or OE converter will invalidate the transmission warranty
- Do not use the vehicle for heavy towing or hauling until 300 miles of stop and go driving has elapsed to allow the computer to relearn the new transmission.
- Special tuning required for 2019-up applications for increased line pressure
