Xtrude Transmission Cooler with Fan – 1/2-Inch Line Kit

Description

[shortdesc]

Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD’s Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation – no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

FEATURES

---

• 22% more cooling over other designs
• 200 Micro Extruded passages
• Large surface area to transfer heat for external air flow cooling
• Turbulent oil flow design promotes a more complete cooling
• Large 5/8-inch ports prevents inlet/outlet restriction
• Furnace brazed rails have been tested to 300psi of pressure
• Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
• 33,930 BTU/HR and in excess of 30,000 GVW!
• Kits complete with all fittings, clamps, hoses and hardware

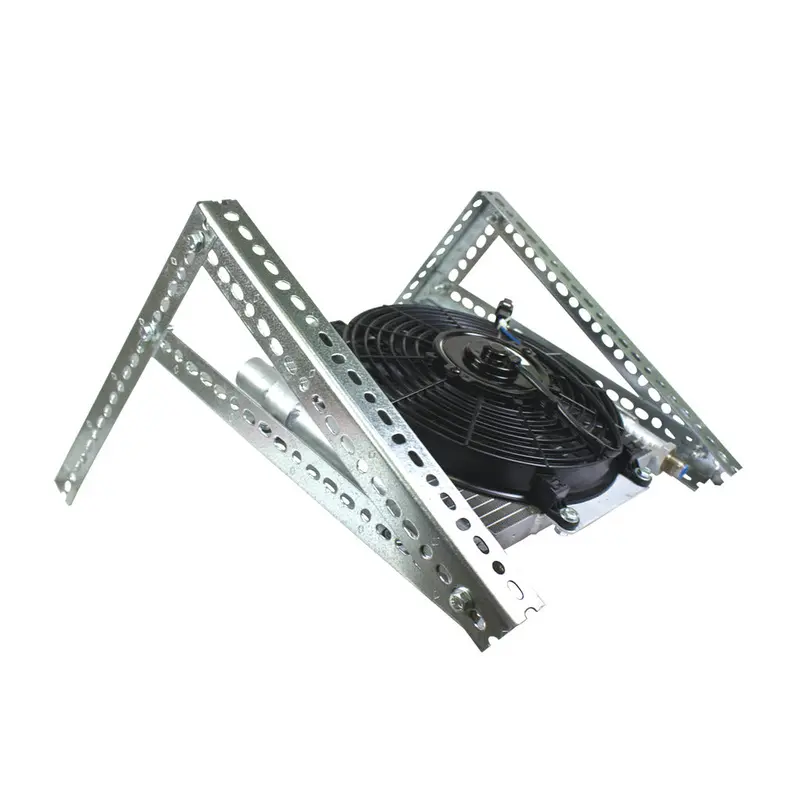

• Build-It-Yourself galvanized bracket kit for quick and easy installation – no wasting time fabricating brackets out of scrap metal
• The pre-wired loomed harness with fuse and relay comes with plug-in connectors
• Dodge 47RH / 47RE / 48RE / 68RFE – 1/2-inch Cooler Lines
• Ford 5R110/6R140 – 1/2-inch Cooler Lines)

INSTALL TIME

---

• 3 Hours 30 Minutes

WARRANTY

---

Parts

• 12-Months
• 24,000 Miles

NOTE

---

• Intended to be used in conjunction with factory transmission coolers and not as stand-alone units

VIDEOS

---

Alligator Performance Product Review on BD Diesel Double Stack Trans Coolers[/shortdesc][product_line]TRANS COOLERS[/product_line][product_applications]Enable[/product_applications][product_manuals]Enable[/product_manuals][product_meta_keywords]diesel transmission cooler, transmission intercooler, Dodge, Ford, Other, 5.9L Cummins 03-04, 5.9L Cummins 04.5-07, 5.9L Cummins 94-98 12 Valve, 5.9L Cummins 98.5-02 24-Valve, 6.0L Powerstroke 03-07, 6.4L Powerstroke 08-10, 6.7L Cummins 07.5-12, 6.7L Cummins 13-18, 6.7L Powerstroke 11-16, Farm, Marine, Motorhome Diesel Power, Transmission, Trans Coolers, Xtrude Transmission Cooler with Fan – Complete Kit for 1/2in Lines (Dodge/Ford)[/product_meta_keywords]
