Description
Carbon 12K 12000lb Winch V3X BYO Hook
SKU: CW-12KV3X-BYOH
⚠️ Please Note: This listing is for the winch only. No hook or soft shackle is included. The winch is supplied with the winch accessory kit and synthetic rope — perfect if you already have your own hook or recovery hardware.
The Carbon 12K Winch V3X is a lightweight, high-performance 12,000lb winch built for tough Australian off-road conditions. With a powerful 6HP series wound motor, 3-stage planetary gearbox, and IP68 waterproofing, the V3X is designed for reliable recoveries in mud, water, sand, and dust.
Key Features
- ✔️ Rated line pull: 12,000lb (5,450kg) single-line
- ✔️ Lightweight: 19.7kg with synthetic rope attached
- ✔️ Powerful 12V DC 6HP series wound motor (24V option available)
- ✔️ 3-stage planetary geartrain with 218:1 ratio
- ✔️ IP68 waterproof and dustproof protection
- ✔️ Automatic full-load brake in motor housing end plate
- ✔️ Wireless remote control included + wired remote with 12ft (3.7m) lead
- ✔️ Multi-fit CNC billet alloy fairlead (black anodised, laser-etched logo)

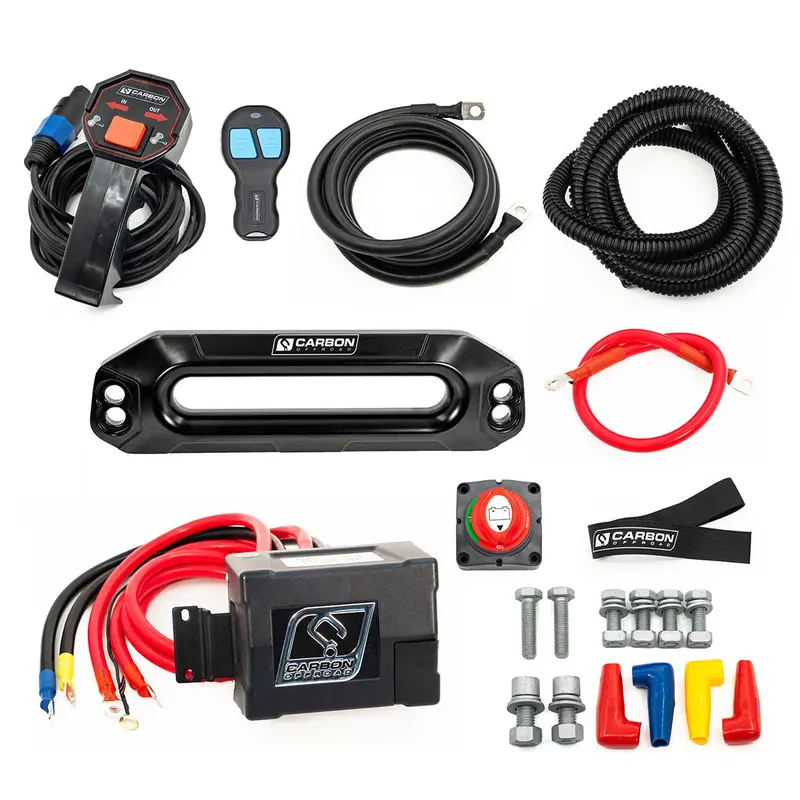

BYO Hook Package
- ✔️ Winch supplied with synthetic rope 24m × 10mm
- ✔️ Control box complete with cables
- ✔️ Wireless remote control included
- ✔️ Wired remote switch with 12ft (3.7m) lead
- ✔️ Multi-fit CNC billet alloy fairlead included
- ✔️ Mounting bolts and winch accessory kit included
- ✔️ No hook or soft shackle included (BYO Hook listing)
Speed & Performance Breakdown: 12V DC performance specs across line pull, line speed and motor current.
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 43.3 (13.2) | 70 | 1/12000 (5450) |
| 2000 (910) | 11.5 (3.5) | 130 | 2/9800 (4450) |
| 4000 (1810) | 9.2 (2.8) | 170 | 3/8300 (3770) |
| 6000 (2720) | 7.9 (2.4) | 220 | 4/7200 (3270) |
| 8000 (3630) | 6.9 (2.1) | 265 | 5/6400 (2900) |
| 10000 (4540) | 5.6 (1.7) | 320 | 6/5800 (2650) |
| 12000 (5450) | 4.6 (1.4) | 390 | 7/5300 (2420) |
Note: Values shown are for 12V DC operation and may vary depending on battery condition and installation.
Technical Specifications
- Part Number: CW-12KV3X
- Motor: 12V DC 6HP series wound motor (24V option available)
- Remote Control: Remote switch, 12ft (3.7m) lead
- Wireless Remote Control: Included
- Geartrain: 3-stage planetary
- Gear Ratio: 218:1
- Clutch (Free Spooling): Rotating ring gear clutch with manual pull and twist clutch handle
- Brake: Full load automatic brake installed in motor housing end plate
- Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
- Synthetic Rope: 24m × 10mm
- Drum Diameter / Length: 63mm × 224mm
- Mounting Bolt Pattern: 254mm × 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L × W × H): 538 × 158 × 187mm (21.2″ × 6.2″ × 7.4″)
- Packing Dimensions (L × W × H): 580 × 200 × 220mm (22.8″ × 7.9″ × 8.7″)
- Winch Weight with Synthetic Rope Attached: 19.7kg (Version 3X)
- Winch Weight (Complete Kit): 26.65kg (incl. rope, control box, cables, mounting bolts & fairlead)
🛠️ Installation
- ✔️ Ensure the mounting platform matches the 254mm × 114.3mm bolt pattern
- ✔️ Use a 650 CCA minimum battery for reliable winching performance
- ✔️ Route cables safely away from sharp edges and heat sources
- ✔️ Check clutch engagement and brake operation before first use
📄 Download Installation Guide (PDF)
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
- ✔️ Limited Lifetime Mechanical Warranty
- ✔️ 5 Year Electrical Warranty
- ✔️ 5 Year Water Ingress Protection Warranty
