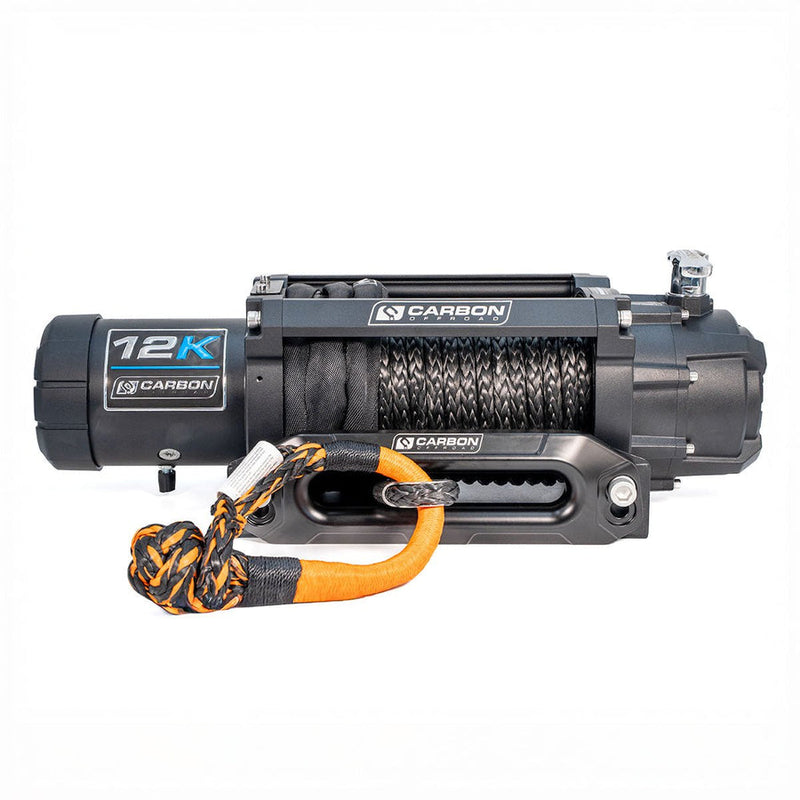

Carbon 12K 12000lb Winch V3X with 15T Soft Shackle
⚠️ Please Note: This listing includes the winch and a 15T Soft Shackle. No hook is included. The winch is supplied with the winch accessory kit — perfect if you already have a hook or prefer to remove heavy items from your recovery kit.
The Carbon 12K Winch V3X is a lightweight, high-performance 12,000lb winch built for tough Australian off-road conditions. Powered by a 12V DC 6HP series wound motor with a 3-stage planetary gearbox and IP68 waterproofing, it’s designed for reliable recoveries in mud, water, sand, and dust — and it’s backed by strong warranty coverage for peace of mind in Australia.
Key Features
- ✔️ Rated line pull: 12,000lb (5,450kg) single-line
- ✔️ Lightweight: 19.7kg with synthetic rope attached (Version 3X)
- ✔️ Powerful 12V DC 6HP series wound motor (24V option available)
- ✔️ 3-stage planetary geartrain with 218:1 ratio
- ✔️ IP68 waterproof and dustproof protection
- ✔️ Automatic full-load brake in motor housing end plate
- ✔️ Wireless remote control included + wired remote with 12ft (3.7m) lead
- ✔️ Multi-fit CNC billet alloy fairlead (black anodised, laser-etched logo)

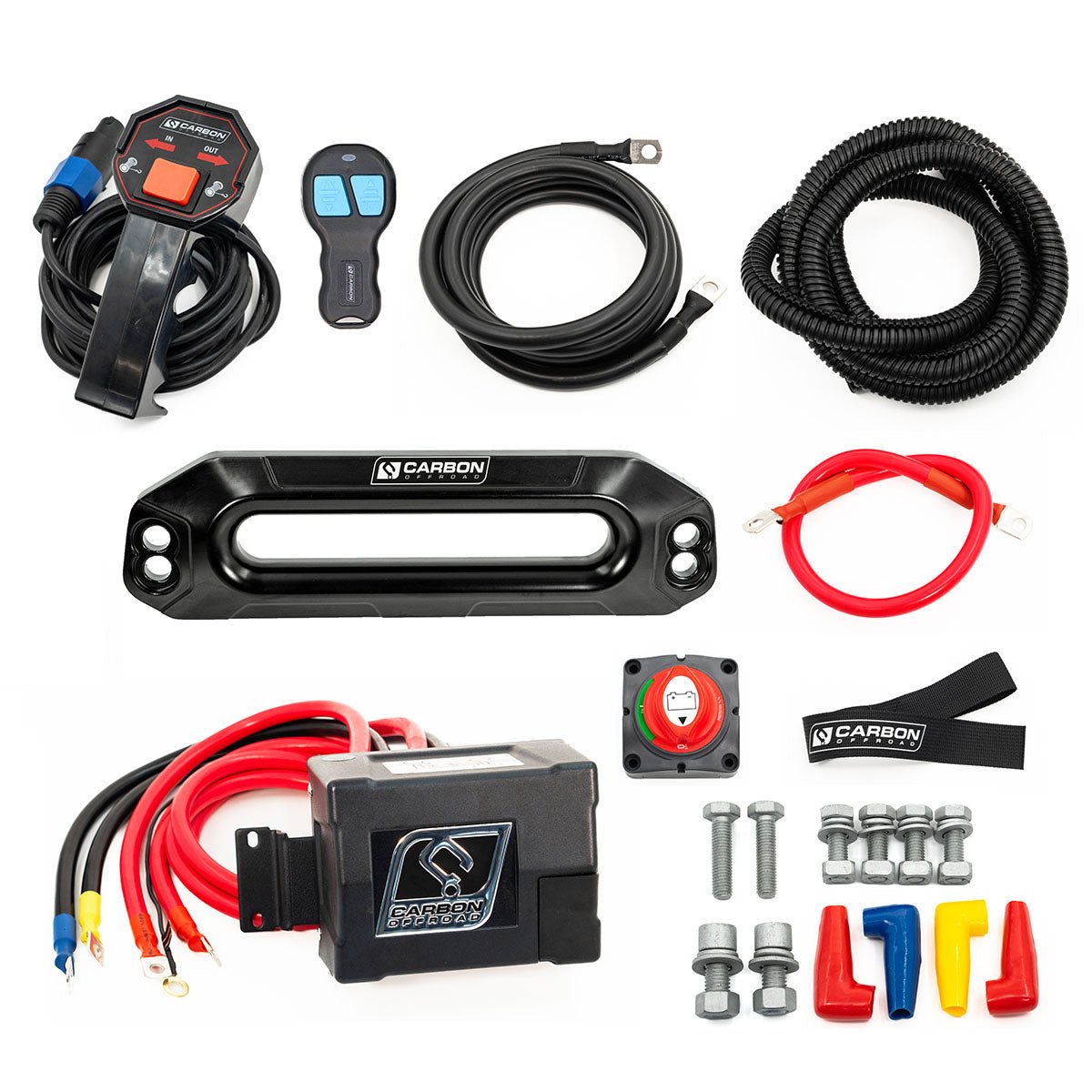

What’s Included (Soft Shackle Package)
- ✔️ Carbon 12K Winch V3X
- ✔️ 15T Soft Shackle included
- ✔️ Synthetic rope 24m × 10mm
- ✔️ Control box complete with cables
- ✔️ Wireless remote control included
- ✔️ Wired remote switch with 12ft (3.7m) lead
- ✔️ Multi-fit CNC billet alloy fairlead included
- ✔️ Mounting bolts and winch accessory kit included
- ✔️ No hook included
Winch Dimensions
Speed & Performance Breakdown
12V DC performance specs across line pull, line speed and motor current.
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 43.3 (13.2) | 70 | 1/12000 (5450) |
| 2000 (910) | 11.5 (3.5) | 130 | 2/9800 (4450) |
| 4000 (1810) | 9.2 (2.8) | 170 | 3/8300 (3770) |
| 6000 (2720) | 7.9 (2.4) | 220 | 4/7200 (3270) |
| 8000 (3630) | 6.9 (2.1) | 265 | 5/6400 (2900) |
| 10000 (4540) | 5.6 (1.7) | 320 | 6/5800 (2650) |
| 12000 (5450) | 4.6 (1.4) | 390 | 7/5300 (2420) |
Note: Values shown are for 12V DC operation and may vary depending on battery condition and installation.
Technical Specifications
- Part Number: CW-12KV3X
- Rated Line Pull: 12000 lbs (5450 kg) single-line
- Motor: 12V DC 6HP series wound motor (24V option available)
- Remote Control: Remote switch, 12ft (3.7m) lead
- Wireless Remote Control: Included
- Geartrain: 3-stage planetary
- Gear Ratio: 218:1
- Clutch (Free Spooling): Rotating ring gear clutch with manual pull and twist clutch handle
- Brake: Full load automatic brake installed in motor housing end plate
- Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
- Synthetic Rope: 24m × 10mm
- Drum Diameter / Length: 63mm × 224mm
- Mounting Bolt Pattern: 254mm × 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L × W × H): 538 × 158 × 187mm (21.2″ × 6.2″ × 7.4″)
- Packing Dimensions (L × W × H): 580 × 200 × 220mm (22.8″ × 7.9″ × 8.7″)
- Winch Weight with Synthetic Rope Attached: 19.7kg (Version 3X)
- Winch Weight (Complete Kit): 26.65kg (incl. rope, control box, cables, mounting bolts & fairlead)
- Included Recovery Item: 15T Soft Shackle
🛠️ Installation
- ✔️ Confirm your mounting platform matches the 254mm × 114.3mm bolt pattern
- ✔️ Use a 650 CCA minimum battery for reliable winching performance
- ✔️ Route all cables safely away from sharp edges, moving parts, and heat sources
- ✔️ Test clutch engagement and brake operation before the first recovery
📄 Download Installation Guide (PDF)
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
- ✔️ Limited Lifetime Mechanical Warranty
- ✔️ 5 Year Electrical Warranty
- ✔️ 5 Year Water Ingress Protection Warranty
